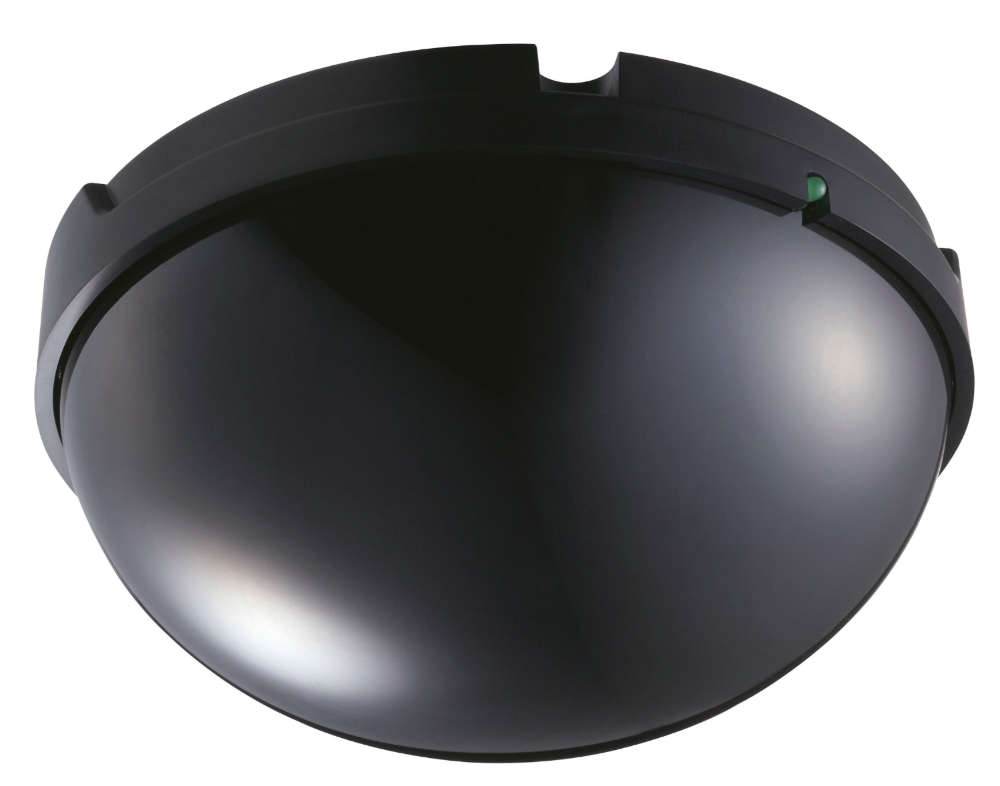

IR-510R
Receiver
The IR-510R infrared wireless receiver is designed for exclusive use with the IR-702T infrared wireless tuner. It can be mounted to a ceiling.
- Designed for exclusive use with IR-702T Infrared Wireless Tuner
- Power indicator LED
- Can be mounted to a ceiling
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| IR-510R | IR-520R | IR-500R | |
|---|---|---|---|
| Finish |
PC resin, ABS resin, black |
PC resin, ABS resin, black |
PC resin, ABS resin, black, off-white (RAL 9010 or equivalent) |
| Dimensions |
120 x 71.3 mm (Ø x D) |
84.5 x 63.5 x 32 mm (W x H x D) |
70 x 120 x 72 mm (W x H x D) |
| Weight |
205 g |
100 g |
220 g |
| Power source |
24 V DC (supplied from IR-702T) |
24 V DC (supplied from IR-702T) |
24 V DC (supplied from IR-702T) |
| Current consumption |
60 mA |
30 mA |
40 mA |
| Accessory (included) |
Mounting bracket x 1 |
Stand mounting bracket x 1, Bracket mounting screw x 2 |
