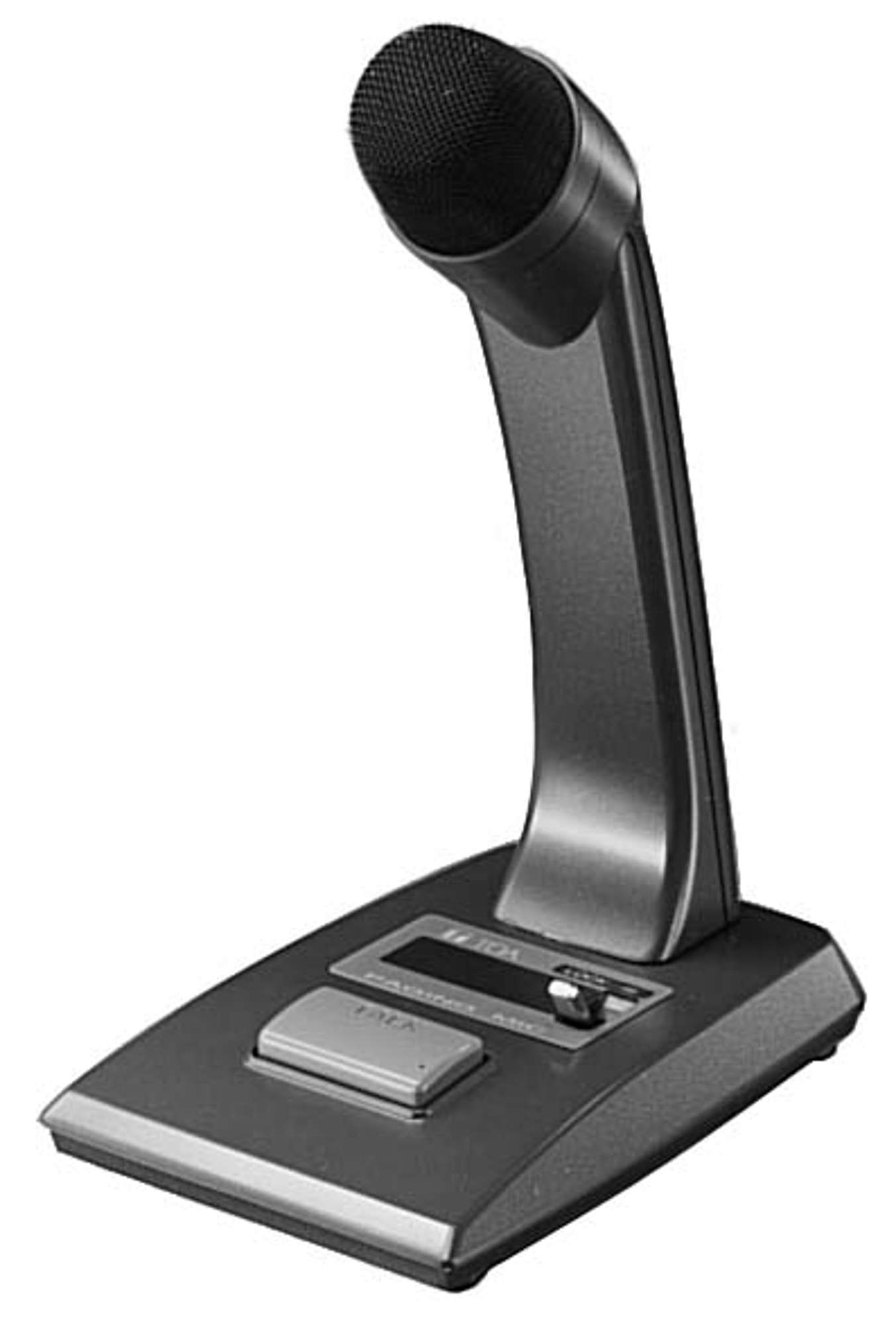

PM-660D
Paging Microphones
Designed for paging calls and general announcements, the PM-660D desk-top microphone comes with a large talk switch and a lock lever for easy and convenient operation. Its robust anti-vibration construction and balanced output render the microphone resistive to noise. In addition, the PM-660U microphone is equipped with a remote control switch (interlocked with the talk switch) for amplifier power on/off operation or chime activation.
- Short-off talk switch with locking lever or openoff type switch contact
- Low handling noise
- 5-pin DIN-plug
- Talk-switch with contact for remote control
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| PM-660D | |
|---|---|
| Frequency response |
100 Hz - 10 kHz |
| Directivity |
Cardioid |
| Microphone sensitivity |
-58 dB (1 kHz 0 dB = 1 V/Pa) |
| Rated impedance |
600 Ω |
| Controls |
Leaf spring contact (interlocked with talk switch, 30 V DC, under 500 mA |
| Dimensions |
100 x 215 x 150 mm (W x H x D) |
| Weight |
440 g |
