Specifications
Specifications for product:

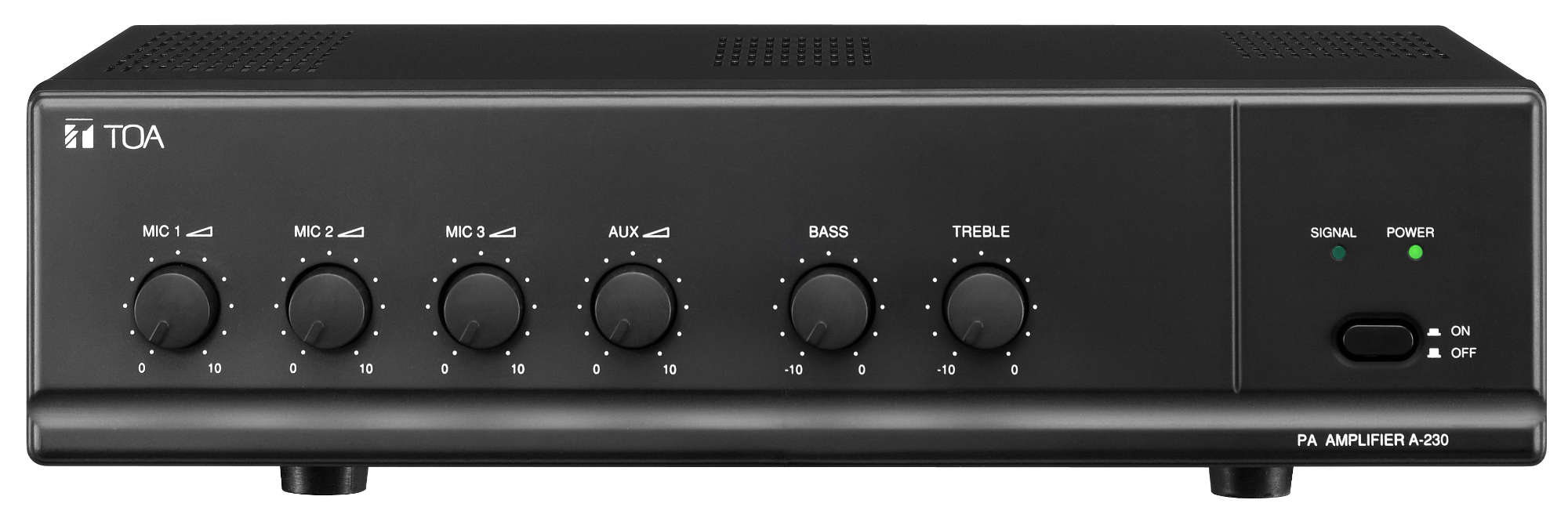

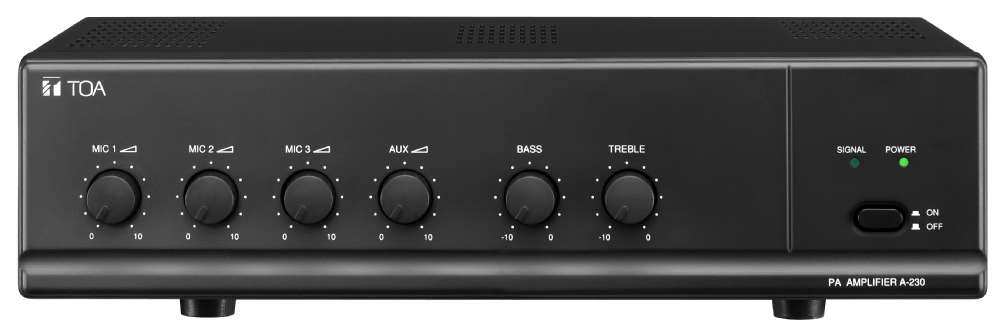

| A-230 | |
|---|---|
| Power / current consumption |
34 W (AC operation at EN60065) |
| Frequency response |
50 Hz - 20 kHz |
| Rated output |
30 W |
| Audio input |
MIC 1: -60 dBV (1.0 mV), 600 Ω, Unbalanced, Equivalent to 5-pin DIN Type MIC 2: -60 dBV (1.0 mV), 600 Ω, Unbalanced, Equivalent to phone jack Type AUX 1, 2: -20 dBV (100mV), 10 kΩ, unbalanced, RCA pin jack |
| Audio output |
Speaker Out: Floating balanced High impedance: 330 Ω (100 V) Low impedance: 4 Ω (11 V)
|
| Control input |
Muting contact (5-pin DIN Type): MIC 1 overrides other MIC input and AUX inputs with 0 - 30 dB attenuation attenuation by switch |
| Controls |
Bass: -10 dB at 100 Hz Treble: -10 dB at 10 kHz |
| Finish |
Steel plate, black |
| Dimensions |
350 x 105 x 240 mm (W x H x D) |
| Weight |
3.5 kg |
| Distortion |
≤ 1 % (at 1 kHz, 1/3 rated output power) |
