CS-660BS

Music Horn Speakers

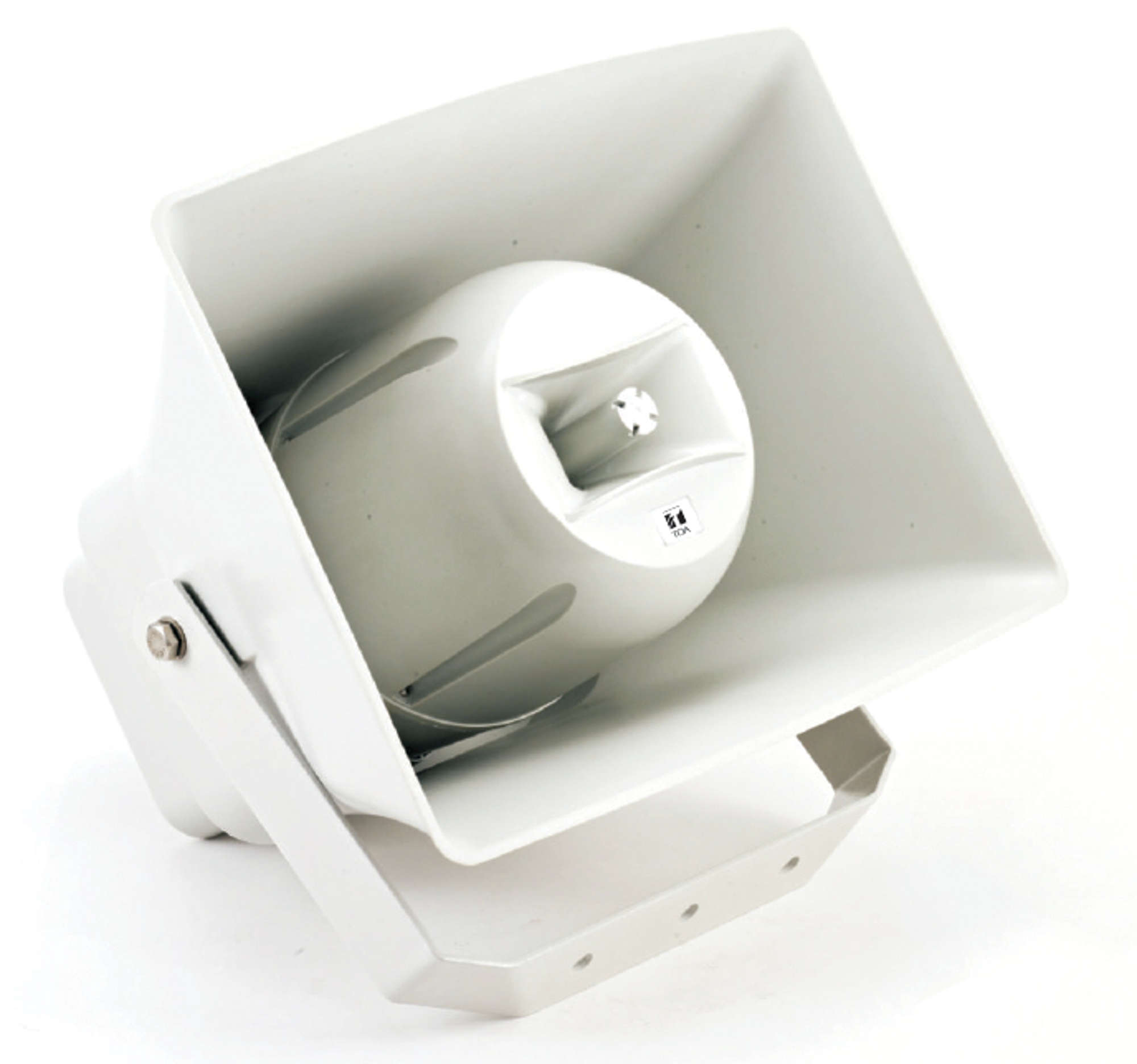

This music horn speaker is comprised of a high-efficiency weather-resistant horn and a high quality sound cone speaker, providing excellent speech and BGM clarity. It features ABS resin enclosure and stainless steel bracket for all weather durability. The CS-660BS-EB is certified to the European Standard EN 54-24: 2008 and International Standard ISO 7240-24: 2010, and is compliant with the British Standard BS 5839-8: 2008.

  • Highly intelligible: suited to voice alarm, public address and BGM application by 2-way system
  • All weather durability, water and dust protection to IP66
  • Impedance change available by tapping changing located inside the terminal cover
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
CS-660BS CS-530BS
Frequency response

100 Hz - 20 kHz

120 Hz - 20 kHz

Sensitivity (1 W, 1 m)

97 dB

96 dB

Max. SPL (1 m)

115 dB

111 dB

Tappings

100 V: 170 Ω (60 W) / 330 Ω (30 W) / 670 Ω (15 W) / 1.3 kΩ (7.5 W)

100 V: 330 Ω (30 W) / 670 Ω (15 W) / 1.3 kΩ (7.5 W) / 2.7 kΩ (3.75 W)

Speaker component

Bass: 16.5 cm Coating rubber surround, Treble: High efficiency tweeter

Bass: 12.7 cm Coating rubber surround, Treble: High efficiency tweeter

Operating temperature

-25 °C to +70 °C

-25 °C to +70 °C

Finish

ABS resin, light grey (RAL 7035 or equivalent)

ABS resin, light grey (RAL 7035 or equivalent)

Dimensions

418 x 332 x 391 mm (W x H x D)

315 x 215 x 356 mm (W x H x D)

Weight

7.1 kg

4.7 kg

Connection

Screw terminal

Screw terminal

Sensitivity (1 W, 1 m)

97 dB

96 dB

Rated input (high impedance)

60 W

30 W
