EM-380

Gooseneck Microphone

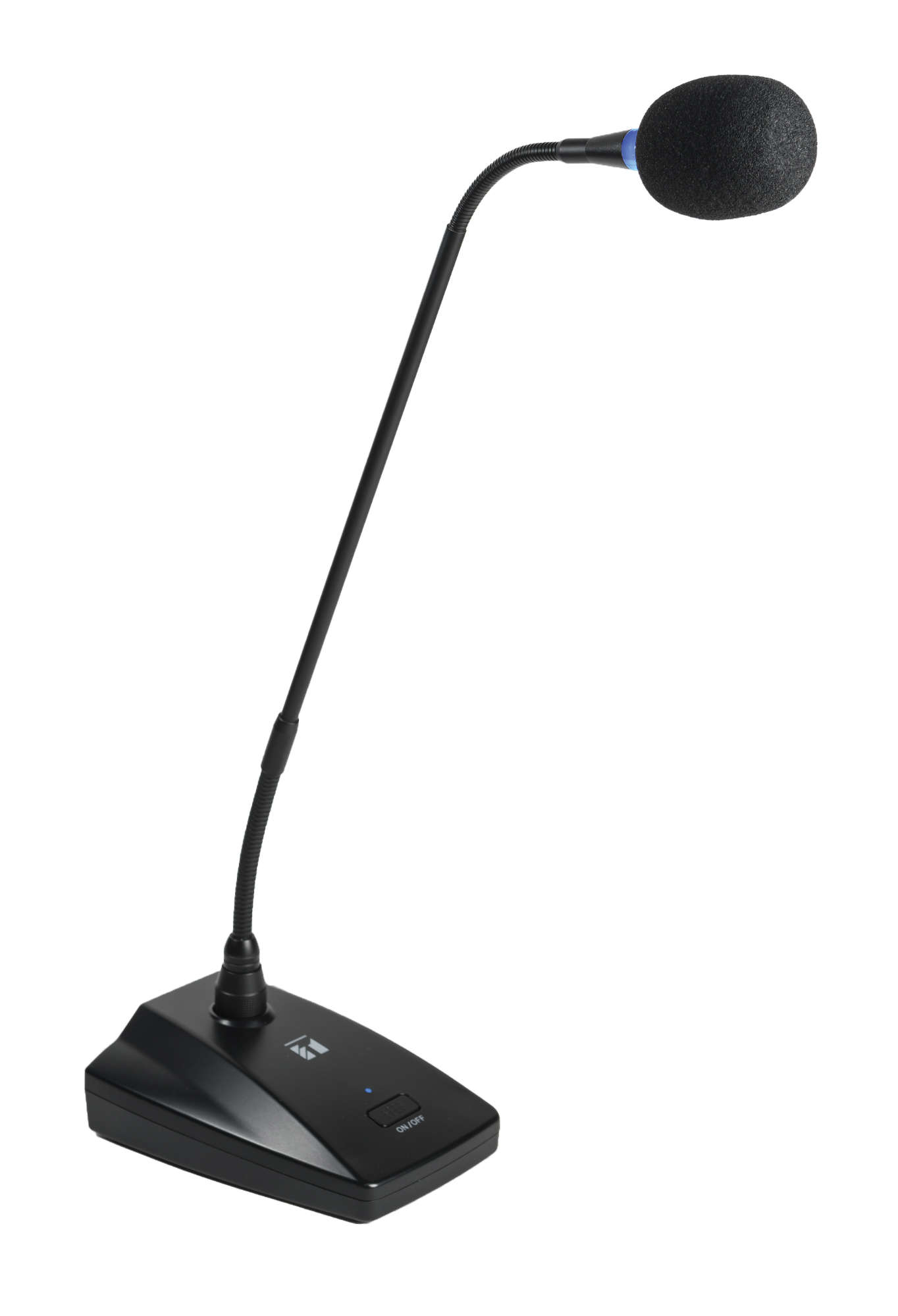

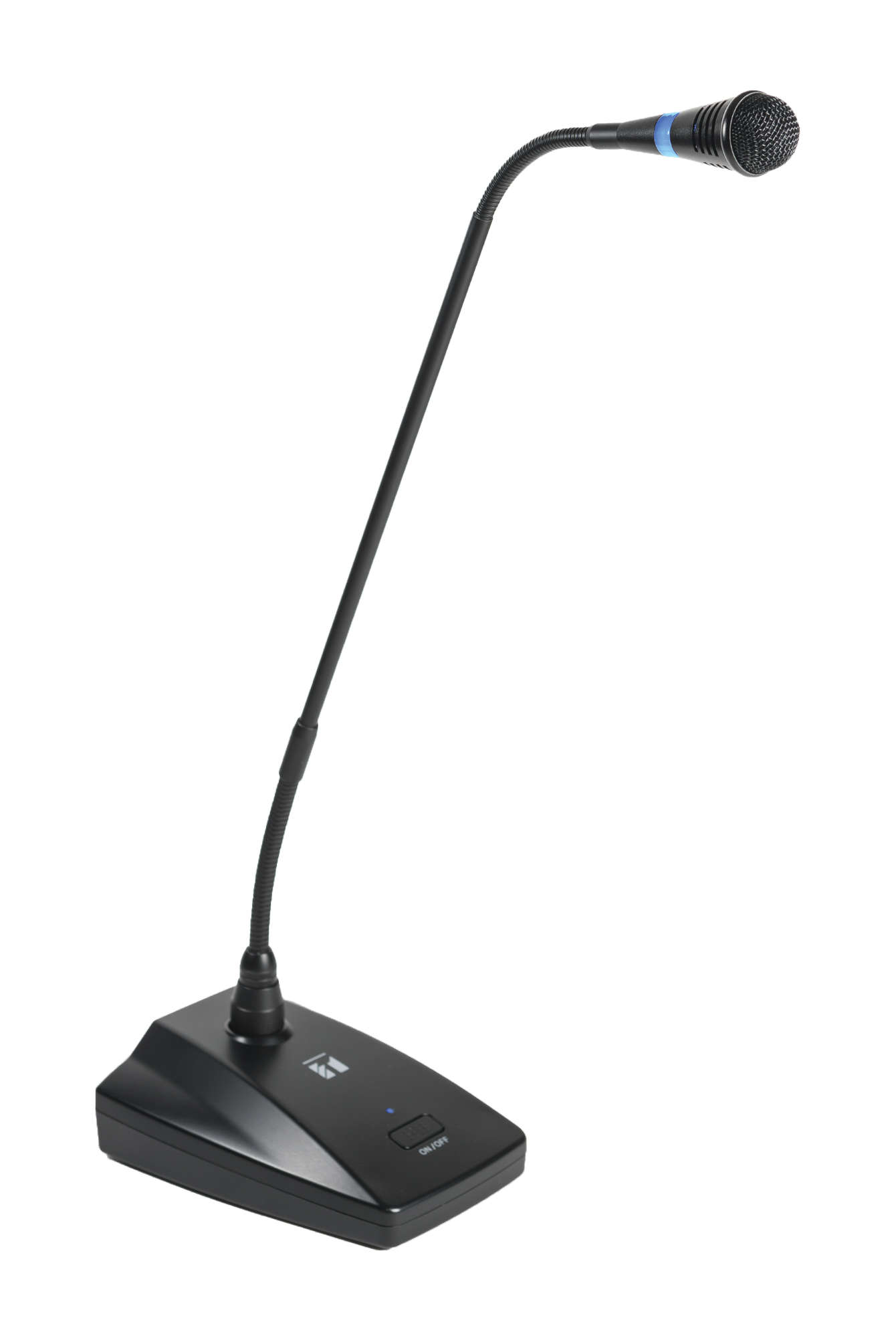

The stylish stand and slim gooseneck gives the EM-380 paging microphone an elegant look. Its stand is stable due to its reasonable weight and rubber feet. When depressing the talk button, the blue ring around the microphone is indicating that it is ready for broadcasting. The microphone can be powered by batteries or by phantom power from a pre-amplifier.

  • 500 mm microphone with stable base
  • Power option selectable (battery or phantom)
  • Blue LED indicator
  • On / off switch for hands-free operation during speech




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
EM-380 EC-100M
Power source

Battery 3 VDC (2 x "AA" batteries) or phantom power

Frequency response

50 Hz - 16 kHz

200 Hz - 10 kHz

Microphone type

elektret-condensor

Desk top microphone for paging (dynamic)

Directivity

Cardioid

Unidirectional

Microphone sensitivity

-41 dB (1 kHz, 0 dB = 1 V/Pa)

-53 dB (1 kHz 0 dB = 1 V/Pa)

Controls

Talk button (on/off)

ON/OFF switch

Operating temperature

0°C to 40°C

Finish

ABS resin, black

Zinc, metallic gold

Dimensions

110 x 484 x 145 mm (W x H x D)

112 x 392 x 150 mm (W x H x D)

Weight

550 g

770 g

Connection

3-pin XLR

Phantom power

9 - 52 V

Rated impedance

600 Ω
