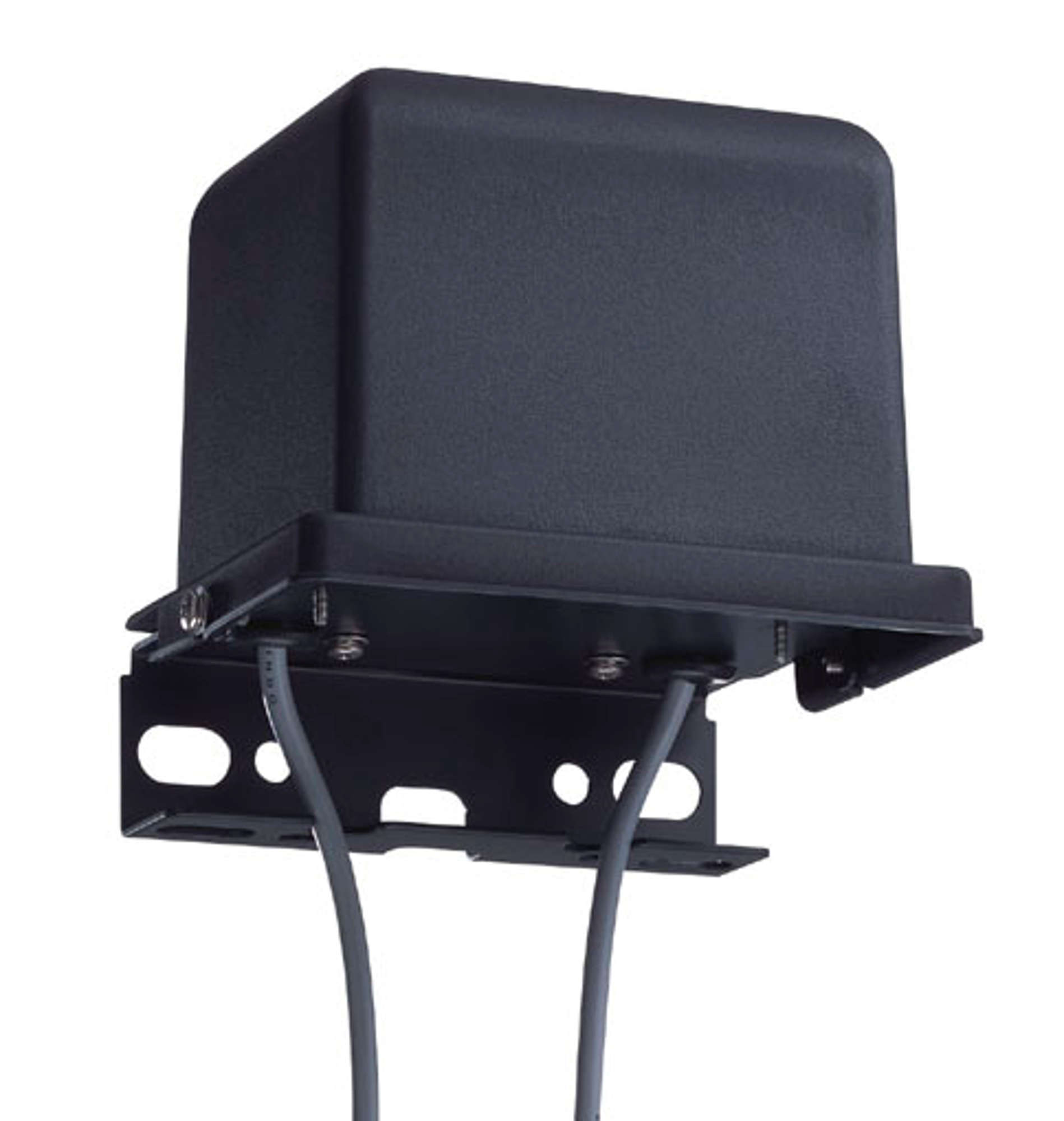

MT-200

Matching Transformer

The MT-200 is a matching transformer for the HX-5 series and HX-7 series speaker systems, and can be used both indoors and outdoors.




  • Specifications
  • Tender text
  • Downloads
Specifications
Specifications for product:
MT-200
Rated input (High Impedance)

200 W

Tappings

Primary Side:
100 V: 50 Ω (200 W), 83 Ω (120 W), 167 Ω (60 W)
70 V: 25 Ω (200 W), 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W)
Secondary Side : 8 Ω

Finish

Polypropylene resin, black

Dimensions

164 x 141 x 129 mm (W x H x D)

Weight

2.8 kg

Accessory (included)

Speaker mounting bolt (M8) with washer ...2
