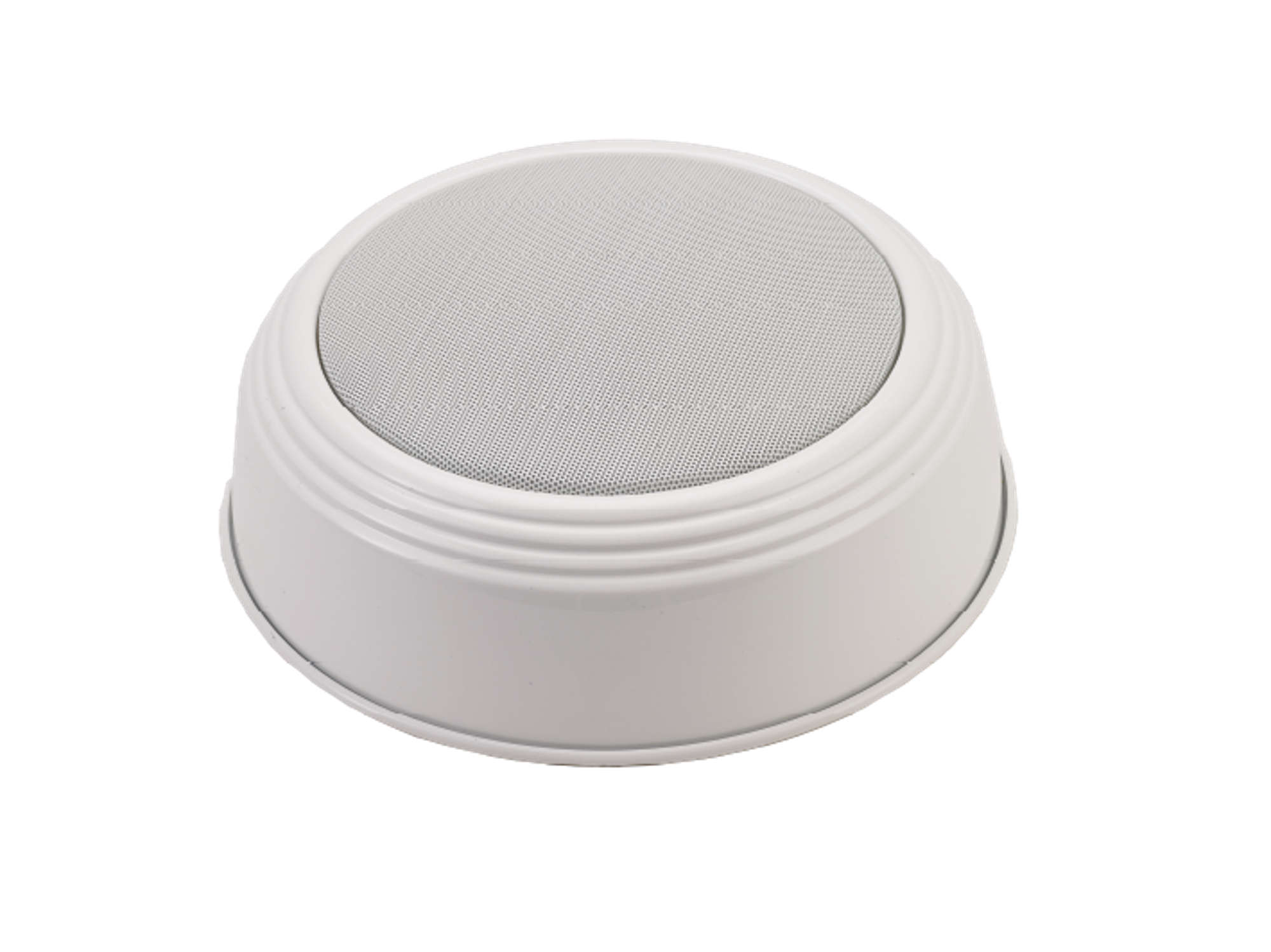

PC-275AB-EB

Ceiling Speakers

  • A/B wiring
  • Only 86 mm depth

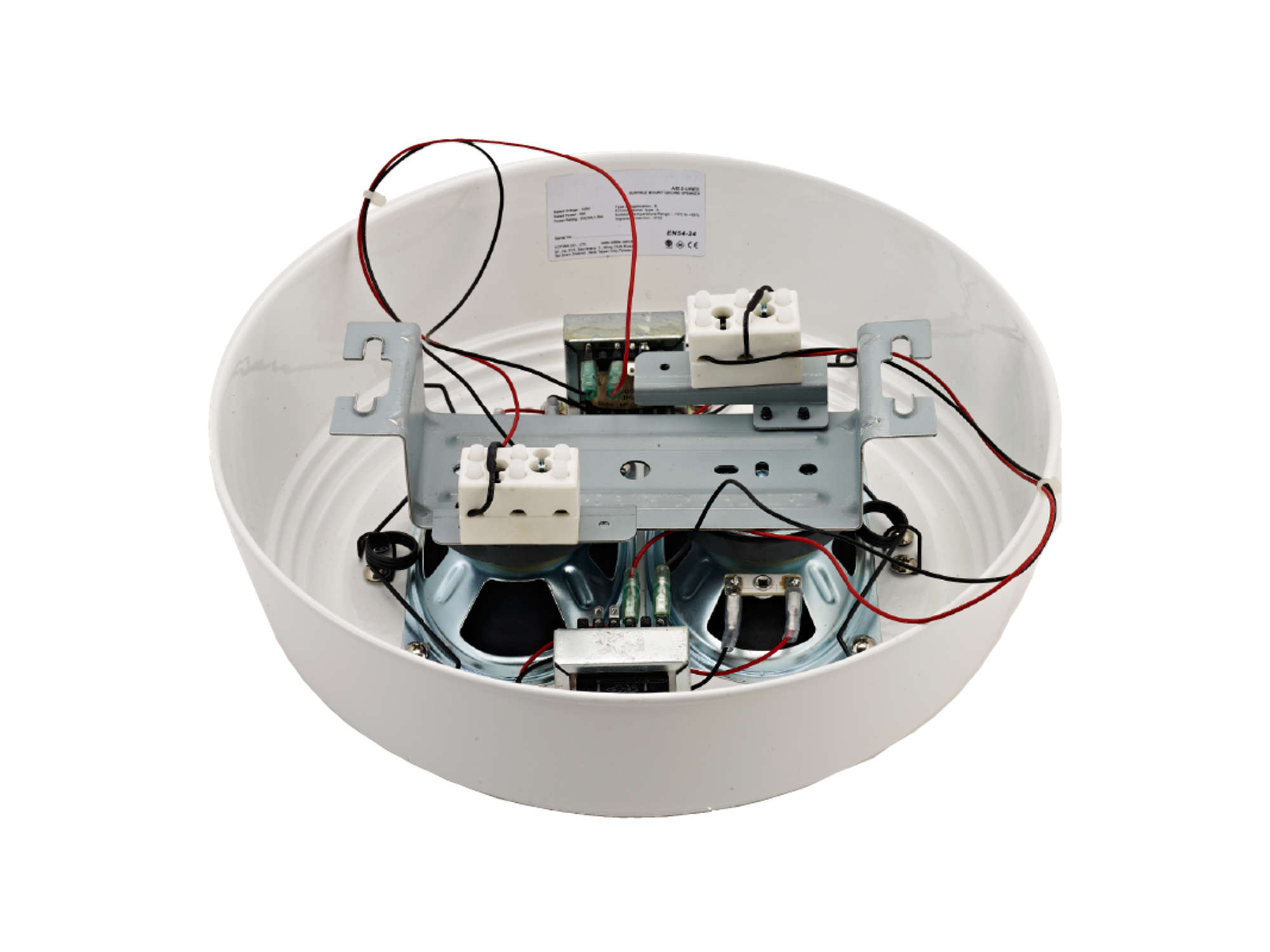

  • 2 separate 100 V transformers and 6 W speakers
  • Quick-mount
  • Certified according to EN 54-24
  • Compliant with BS-5839-8: 2013




  • Specifications
  • Application examples
  • Tender text
  • Downloads
Specifications
Specifications for product:
PC-275AB-EB PC-245AB-EB
Frequency response

180 Hz - 20 kHz

150 Hz - 20 kHz

Connection

ceramic screw terminals x 2

2 ceramic screw terminals, thermal fuse

Sensitivity (1 W, 1 m)

92 dB 2x 0.5 W

91 dB 2x 0.5 W

Max. SPL (1 m)

100 dB

102 dB

Speaker component

2 x 12 cm cone-type

2 x 12 cm cone-type

Rated input (high impedance)

2 x 6 W (100 V)

2 x 6 W (100 V)

Tappings

100 V: 2 x 1.67 kΩ (6 W) / 3.33 kΩ (3 W) / 6.67 kΩ (1.5 W)

100 V: 2 x 1.67 kΩ (6 W) / 3.33 kΩ (3 W) / 6.67 kΩ (1.5 W)

Dust / Water protection.

IP 32

IP 32

Operating temperature

-10 °C to +55 °C

-10 °C to +55 °C

Dimensions

274.4 x 86.5 mm (Ø x D)

245 x 131 mm (Ø x D)

Finish

Steel, traffic white (RAL 9016 or equivalent)

Steel, traffic white (RAL 9016 or equivalent)

Mounting Hole

220 mm
