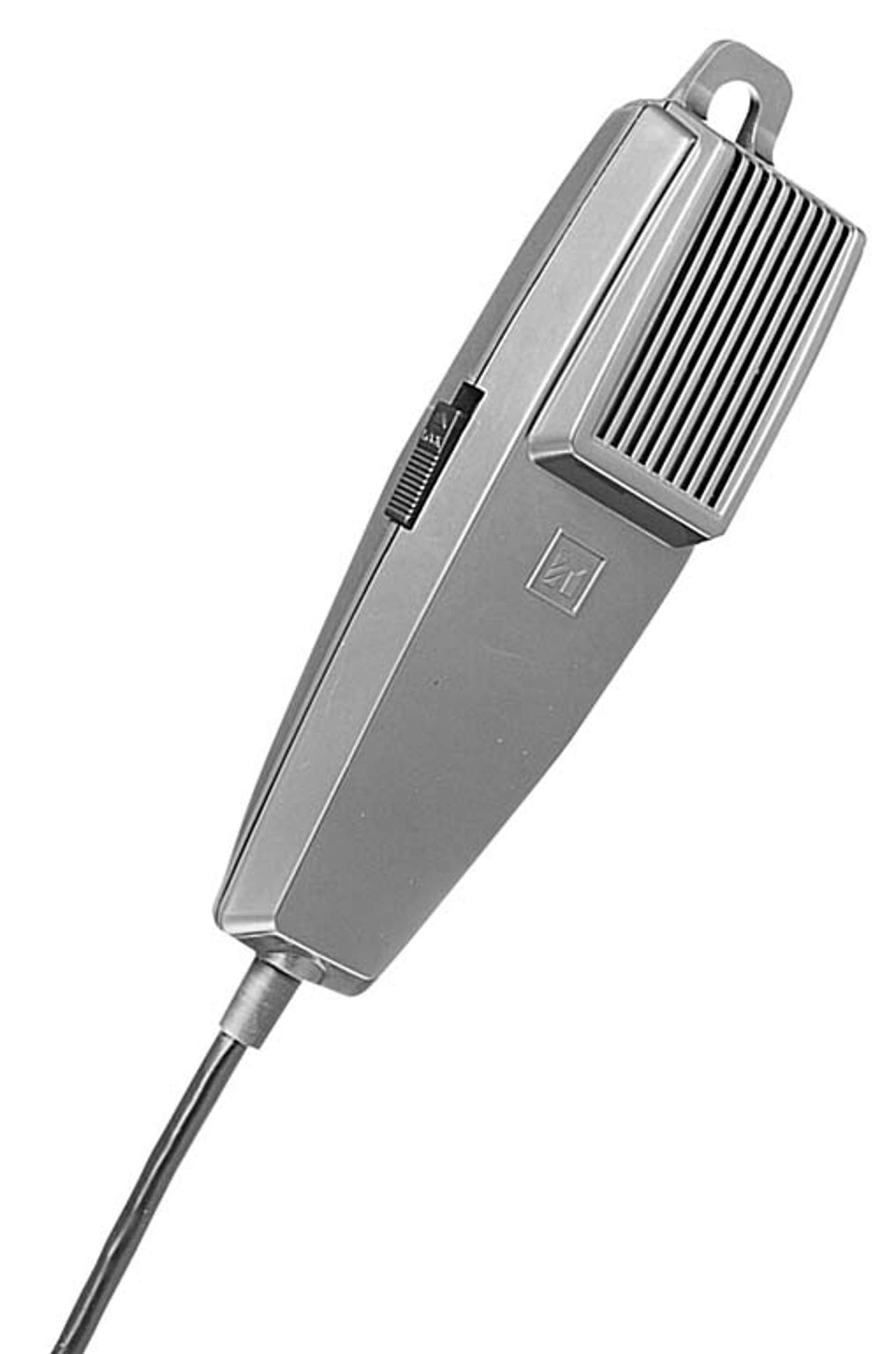

PM-222D

Paging Microphones

The PM-222D is a close-talking microphone for making general announcements. lt comes with a talk switch that can be locked. It is provided with the function to remotely control both the amplifier power and chime operation.

  • Push-to-talk switch with lock
  • Lightweight ABS body
  • With remote switch and DIN-plug




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:
PM-222D
Frequency response

100 Hz - 10 kHz

Microphone type

Rugged microphone (dynamic)

Directivity

Unidirectional

Microphone sensitivity

-47 dB (1 kHz 0 dB = 1 V/Pa)

Rated impedance

600 Ω

Controls

Talk switch: PTT with lock function

Finish

ABS resin, grey

Dimensions

44 x 160 x 38 mm (W x H x D)

Weight

200 g

Connection

Short-off type with lock
