S5.5-HCX-C1

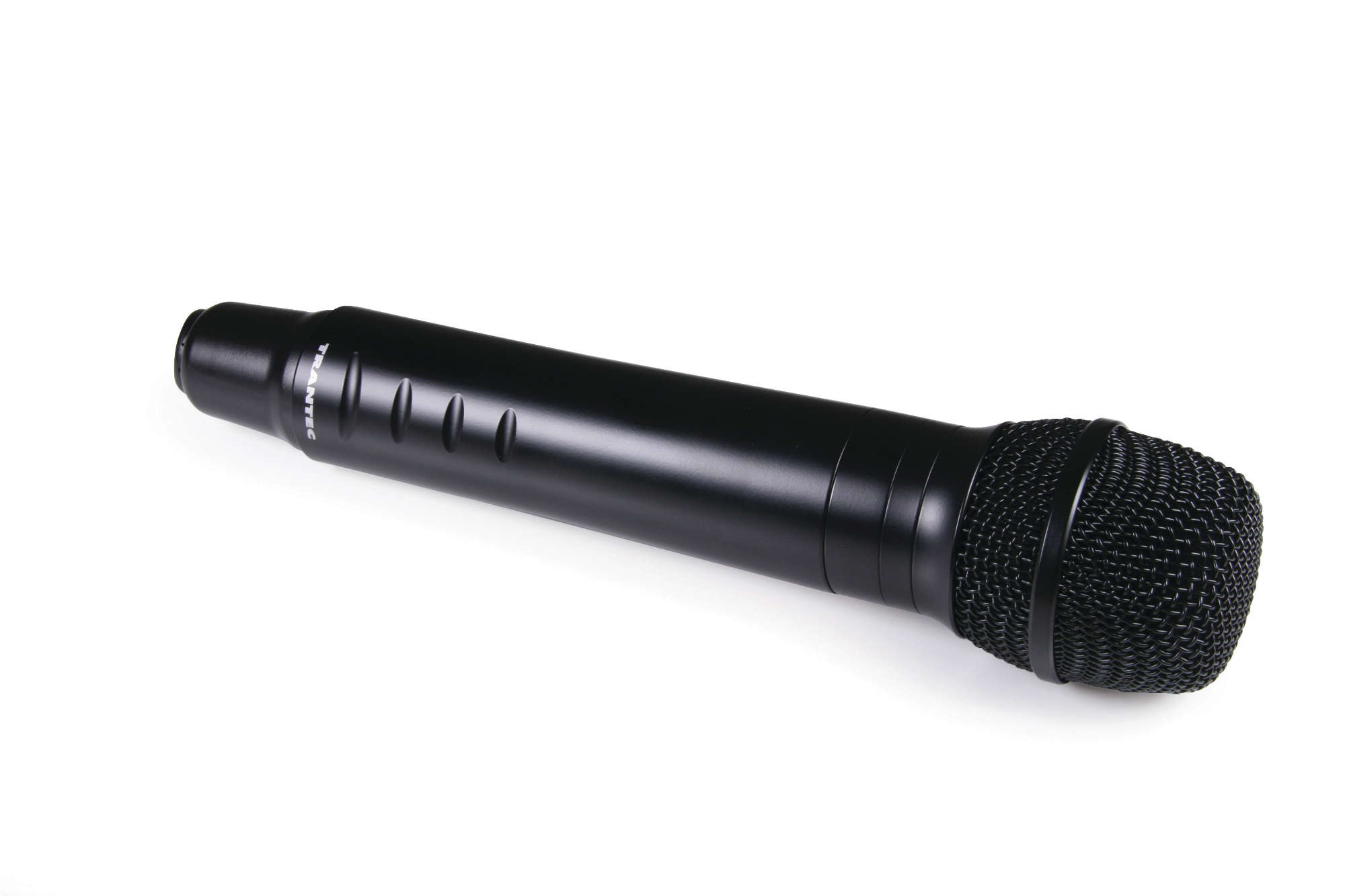

Handheld Condensor Microphone

The S5.5-HCX is a handheld wireless microphone. This features user-friendly operability, and employ an easy-to-read LCD display. Also, it is possible to perform the system settings through infrared communications.

  • Offering 1,400 transmission frequencies
  • Extremely durable full-metal housing
  • LCD screen
  • Up to 10 hours of continuous operation with a single AA battery
  • Infrared sensor for synchronization between the mic and the receiver
  • Mute switch
  • Pickup pattern, which ensures that ambient noise will be most effectively suppressed compared to frontal sources as your mouth
  • Integrated antenna
  • Premium look, matt black finish of its body and grill




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
S5.5-HCX-C1 S5.5-HDX-C1
Power source

Battery 1 AA size alkaline battery, 1.5 V

Battery 1 AA size alkaline battery, 1.5 V

Frequency range

794 - 830 MHz

794 - 830 MHz

Selectable frequencies

1,441

1,441

Microphone type

Electret condenser

Dynamic

Directivity

Cardioid

Hypercardioid

Operating temperature

-10°C ... +55°C

-10°C ... +55°C

Finish

Metal, black

Metal, black

Dimensions

50 x 232.9 mm (Ø x D)

50 x 247.9 mm (Ø x D)

Weight

300 g (with battery)

380 g (with battery)

Battery life

10 h

10 h

Simultaneous channels

24

24

AF response

90 Hz - 20 kHz

60 Hz - 20 kHz

RF output power

10 mW

10 mW

Max. input level

142 dBSPL

146 dBSPL
