Products

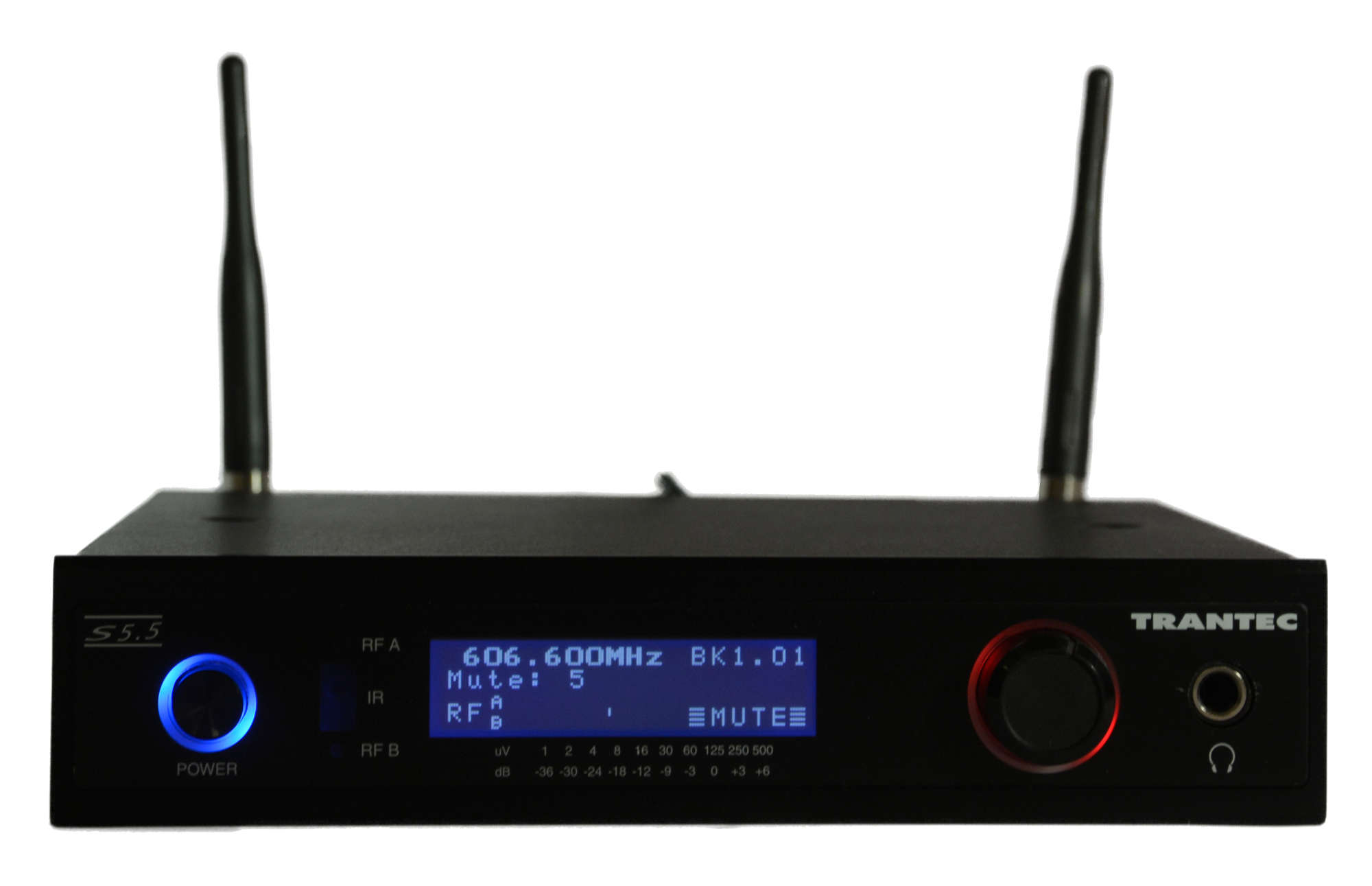

S5.5-RX-B1
True Diversity Receiver
The S5.5-RX is a true diversity tuner. It features user-friendly operation, and employs an easy-to-read LCD display. Also, it is possible to operate the system settings through infrared communications, and to monitor the system status using the supplied PC software.
- 24 simultaneous channels per bank
- Software monitoring/programming
- Automatic frequency scanning
- Triple-squelch
- Full-metal housing
- LCD screen
- Other features: Infrared sync, USB port, EQ, phase reversal, mic/line switch, headphone output, BNC antenna inputs, adjustable triple-squelch
- Specifications
- Application examples
- Equipment
- Tender text
- Downloads
Specifications
Specifications for product:
| S5.5-RX-B1 | |
|---|---|
| Frequency range |
Please contact your national authority to obtain information on authorized frequencies for this wireless systems in your region. |
| Receiving frequency |
722 - 752 MHz |
| Selectable frequencies |
1,400 |
| Diversity principle |
True diversity (dual receiver) |
| Antenna inputs |
2 x BNC (50 Ω) |
| Frequency response |
60 Hz - 20 kHz |
| Audio output |
XLR balanced (mic/line selectable), ¼“ jack unbalanced |
| Finish |
Metal |
| Dimensions |
210 x 46 x 210 mm (W x H x D) |
| Weight |
1.3 kg |
| Accessory (included) |
PC Monitoring Software x 1 |
