SC-630M-EB-Q

Horn Speakers

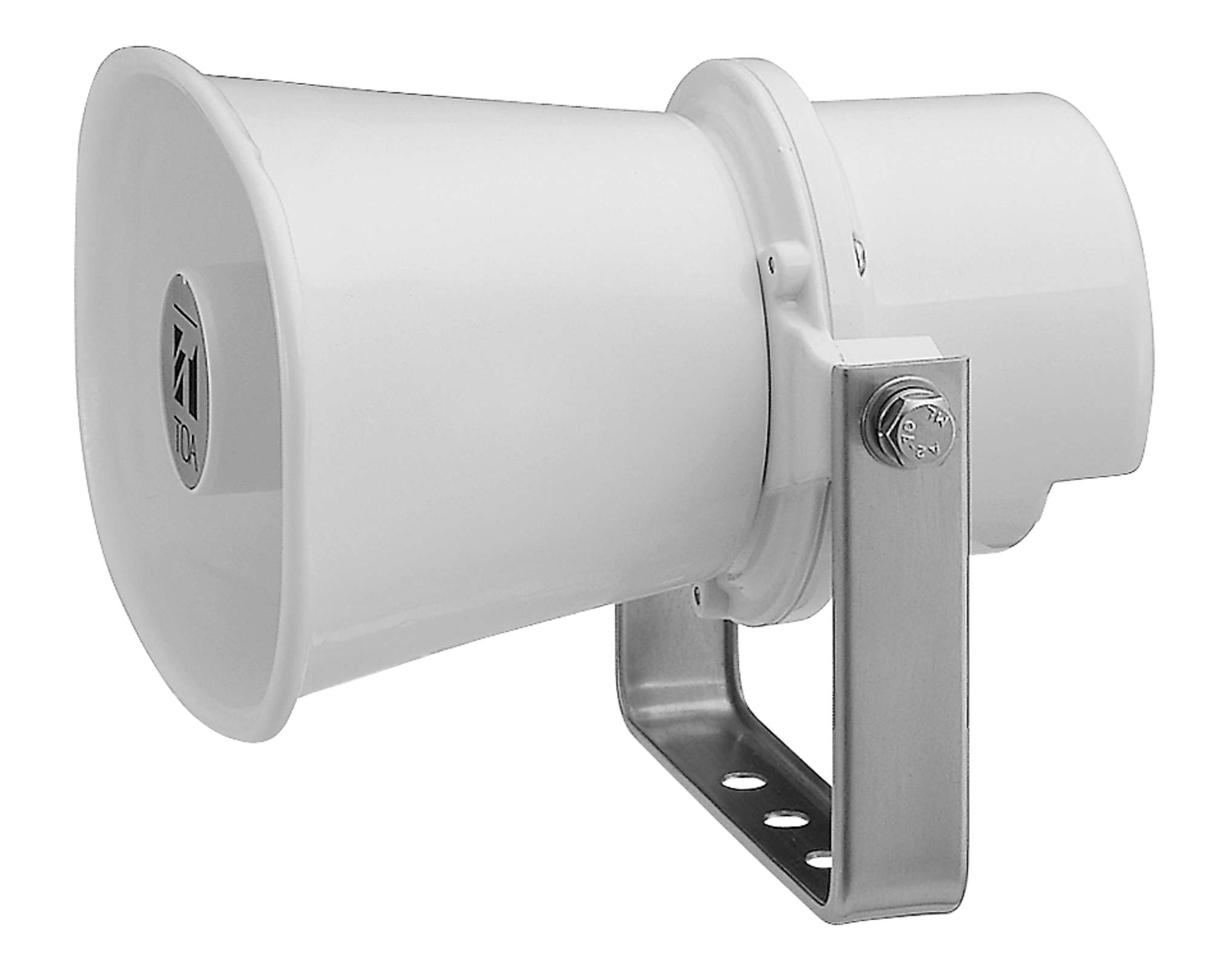

The SC-630M EB-Q is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. The SC-630M EB-Q is certified to the European Standard EN 54-24.

  • All weather durabilty
  • Unique oval shape
  • Excellent speech clarity
  • High SPL
  • Certified according to EN 54-24




  • Specifications
  • Application examples
  • Equipment
  • Tender text
  • Downloads
Specifications
Specifications for product:
SC-630M-EB-Q SC-615BS SC-630M
Frequency response

250 Hz - 10 kHz

315 Hz - 12.5 kHz

250 Hz - 10 kHz

Sensitivity (1 W, 1 m)

113 dB (500 Hz - 2.5 kHz, peak level)

109 dB (500 Hz - 2,5 kHz, peak level)

113 dB

Maximum sound pressure level (1 m) (value)

111 dB

110 dB

Rated input (High Impedance)

30 W

15 W

30 W

Tappings

100 V: 330 Ω (30 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W)
70 V: 170 Ω (30 W) / 330 Ω (15 W) / 670 Ω (10 W) / 1 kΩ (5 W) / 2 kΩ (2.5 W)

100 V: 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) / 3.3 kΩ (3 W)
70 V: 330 Ω (15 W) / 670 Ω (10 W) / 1 kΩ (5 W) / 2 kΩ (2.5 W) / 3.3 kΩ (1.5 W)

30 / 15 / 10 / 5 W (70 V)

30 / 15 / 7.5 / 5 / 2.5 W (100 V)

Finish

Aluminium, powder coating, off-white (RAL 9010 or equivalent), Reflector horn, trans case and terminal cover: ABS resin, off-white (RAL 9010 or equivalent)

Bracket, screws and bolts: Stainless steel

Aluminium, powder coating, off-white (RAL 9010 or equivalent), Reflector horn, trans case and terminal cover: ABS resin, off-white (RAL 9010 or equivalent)

Bracket, screws and bolts: Stainless steel

Aluminium, powder coating, off-white (RAL 9010 or equivalent)

Dimensions

285 x 227 x 277 mm (W x H x D)

172 x 195 x 229 mm (W x H x D)

285 x 227 x 277 mm (W x H x D)

Weight

2 kg

1.5 kg

2 kg

Connection

Screw terminal (steatite), can be bridge-connected

Cable with two wires

Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)

-20 °C to +55 °C (must be free from dew condensation)

Accessory (included)

Terminal cover x 1
