EC-380-EB

Gooseneck Microphone with Chime

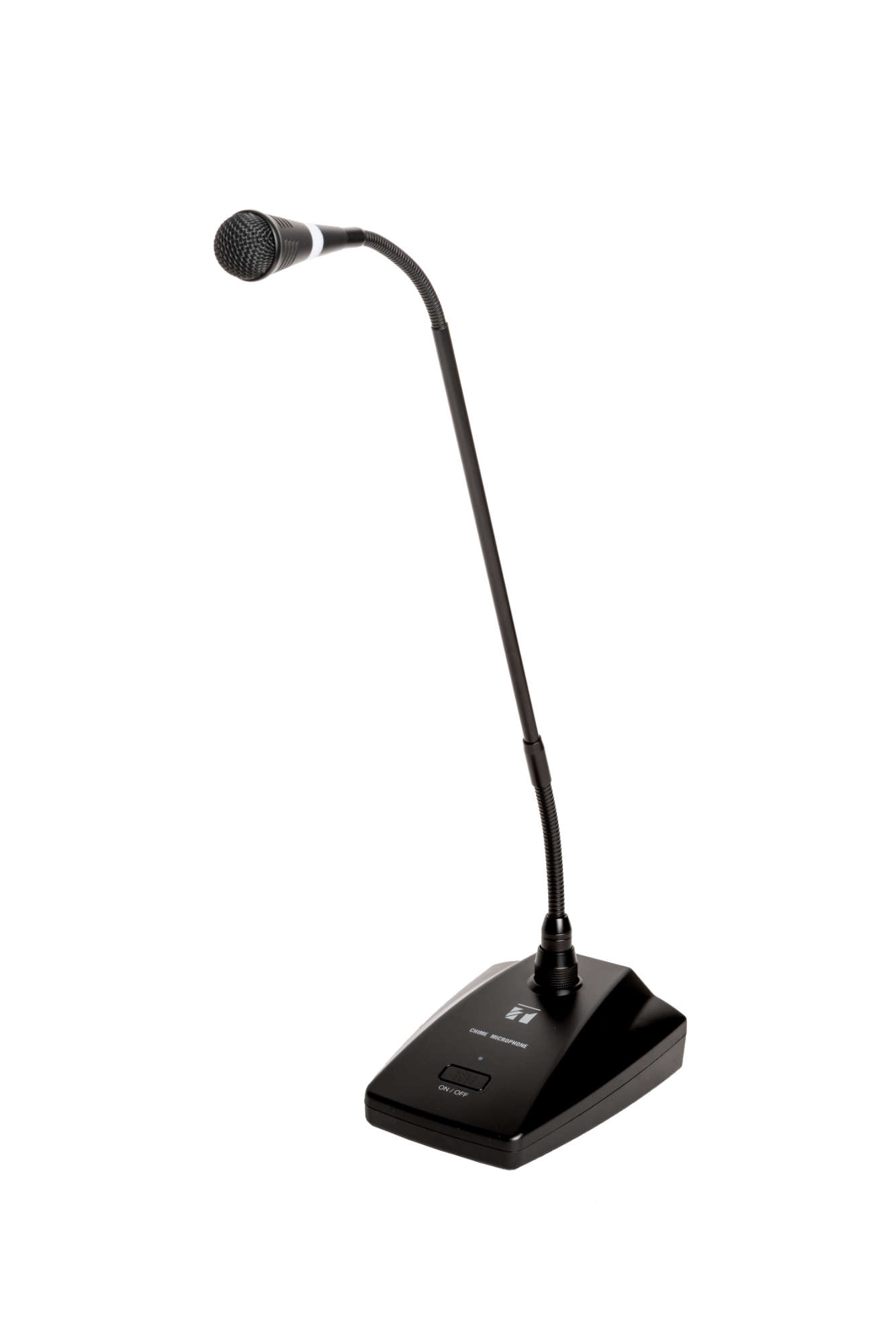

The high-quality EC-380-EB paging microphone comes with an integrated chime function. When depressing the talk button, the blue ring around the microphone is indicating the ascending 4-tone pre-announcement chime sounding and afterwards the readiness for speaking. Depressing the talk button again finishes the paging with an decending 4-tone chime. The microphone can be powered by batteries, an optional AC-adapter or from a PA system via the cable. Its stylish stand and slim gooseneck have an elegant look. The stand is stable due to its reasonable weight and rubber feet.

  • 500 mm microphone with stable base
  • Power option selectable (battery or phantom)
  • Blue LED indicator
  • On / off switch for hands-free operation during speech




  • Specifications
  • Application examples
  • Downloads
Specifications
Specifications for product:

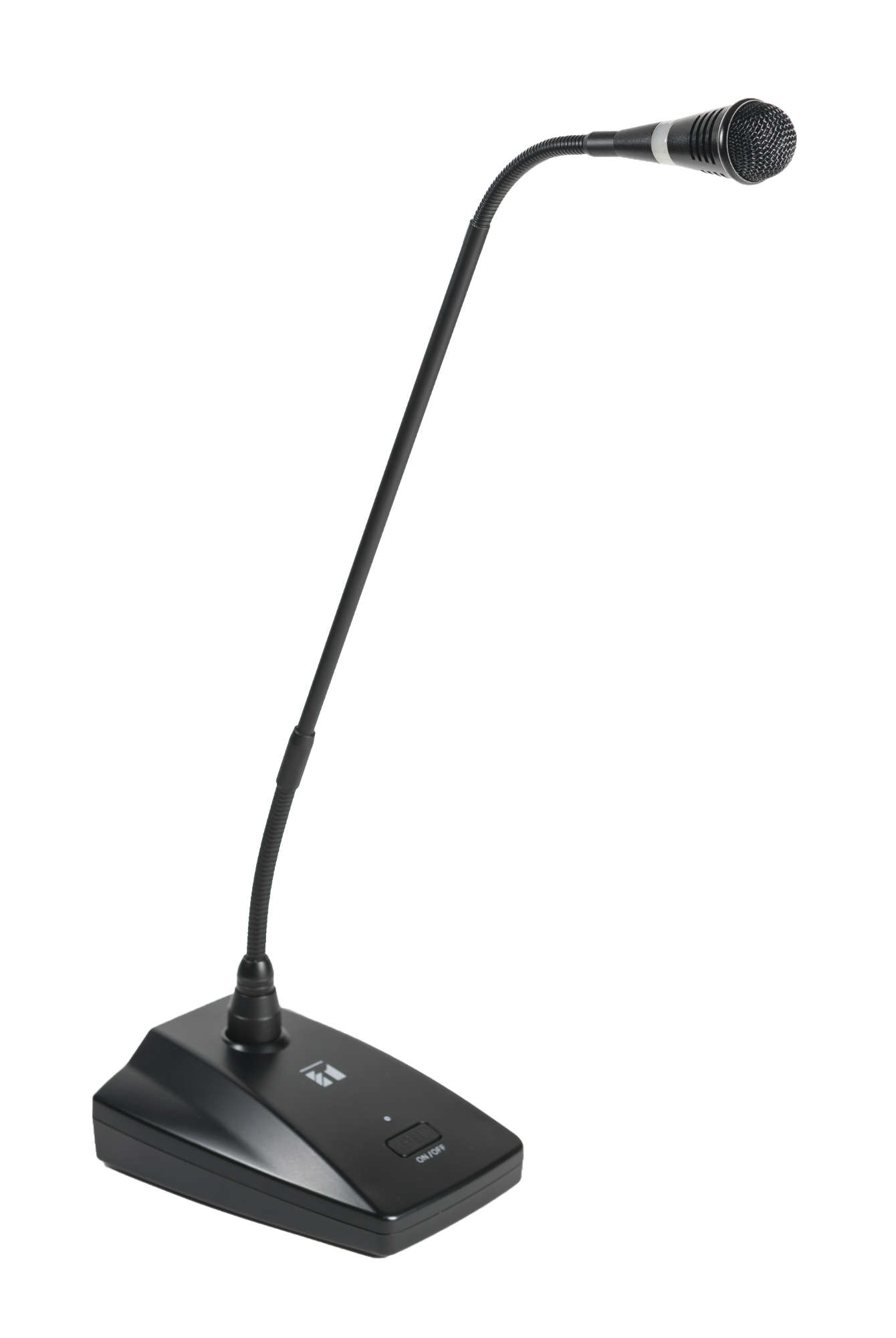

EC-380-EB EM-380-EB
Power source

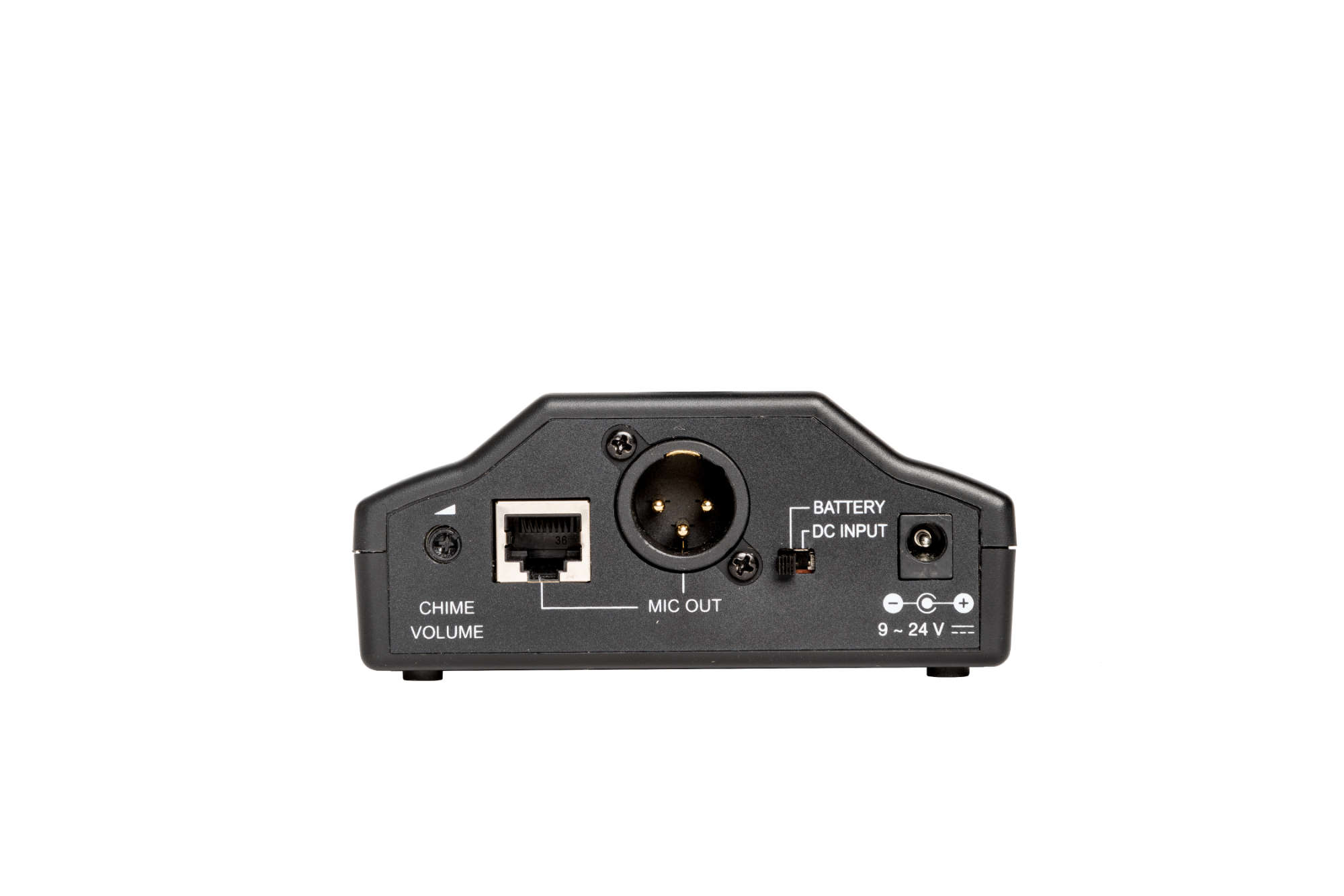

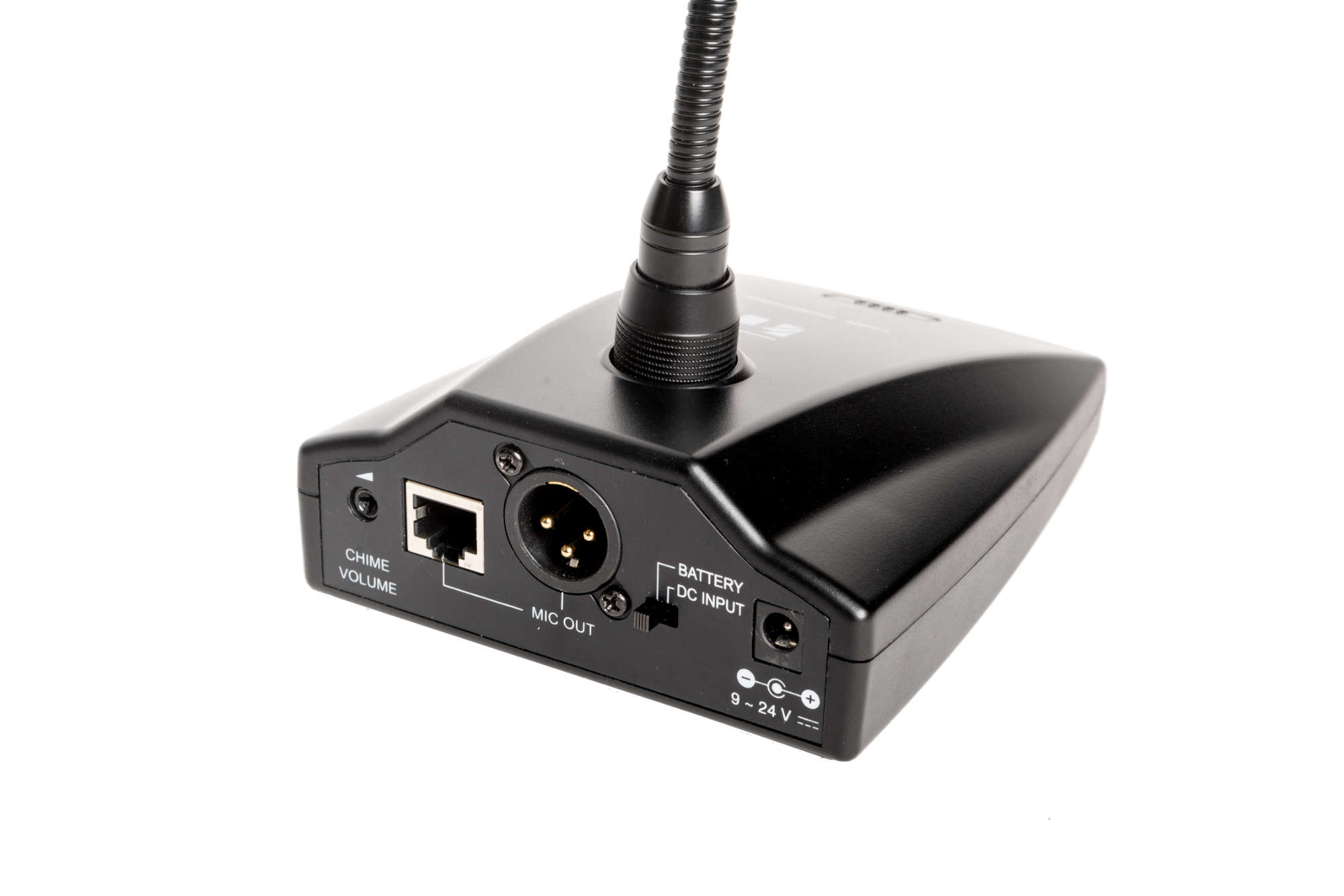

Battery (6 VDC (4 x "AA" batteries) or DC power : 9 ~ 24V)

Battery (3 VDC (2 x "AA" batteries) or phantom power)

Frequency response

50 Hz - 18 kHz

50 Hz - 16 kHz

Connection

3-pin XLR, RJ45

3-pin XLR

Rated impedance

600 Ω

Controls

Talk button (on/off)

Talk button (on/off)

Microphone type

elektret-condensor

elektret-condensor

Directivity

Cardioid

Cardioid

Sensitivity

-41 dB (1 kHz, 0 dB = 1 V/Pa)

-41 dB (1 kHz, 0 dB = 1 V/Pa)

Operating temperature

0°C to 40°C

0°C to 40°C

Finish

ABS resin, paint, black

ABS resin, paint, black

Dimensions

110 x 532 x 145 mm (W x H x D)

110 x 484 x 145 mm (W x H x D)

Weight

558 g

550 g

Accessory (included)

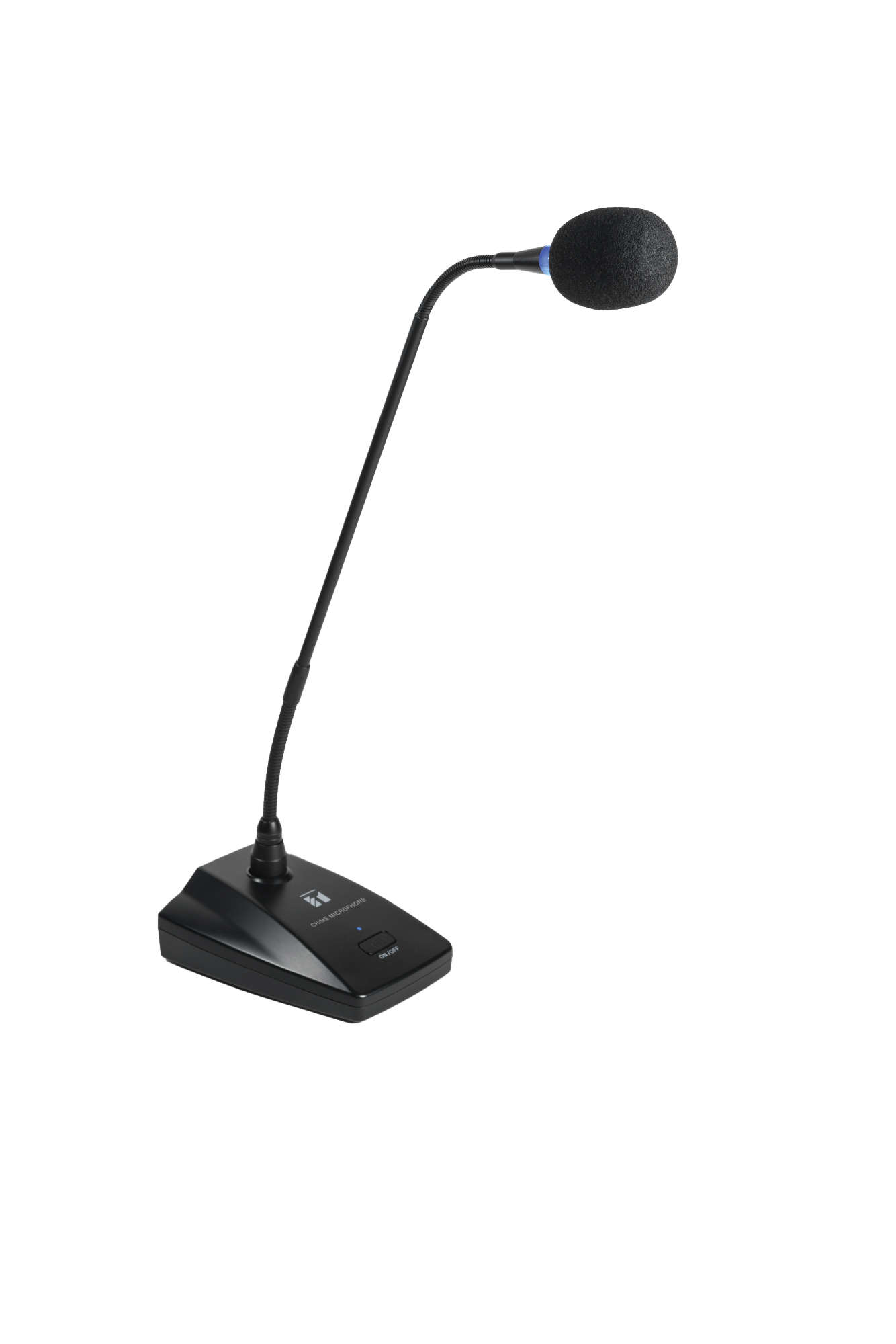

Windscreen x 1, 7.5 m cable with XLR and phone plug x 1

Phantom power

9 - 52 V
